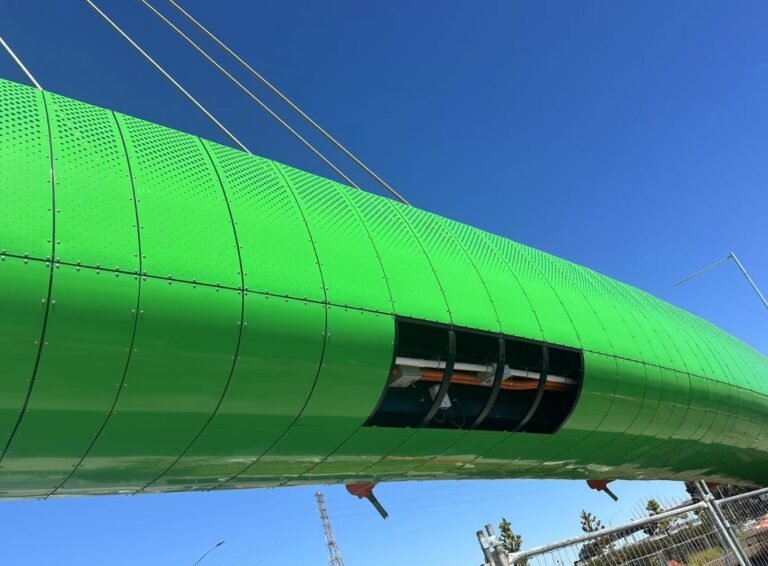

Double Curved Perforated Aluminum Facade

Our custom Curved Perforated Aluminum Panels merge advanced metal fabrication with architectural design, offering unparalleled flexibility for modern building envelopes and interior spaces. Engineered for both aesthetic impact and functional performance, these panels are the ideal solution for creating dynamic, lightweight, and sustainable structures.

Attribute Category	Specifications & Options
Material	Alloy 1100 (Pure), 3003, 5005, 6061 (Structural)
Temper	H14, H24, H32, O (Annealed for severe bending)
Thickness	1.0mm – 4.0mm (Standard), up to 6.0mm (Custom)
Panel Dimensions	Custom, based on curvature and project requirements
Curvature Types	Single Curved (Cylindrical), Double Curved (Compound), Custom 3D Shapes
Perforation Patterns	Round, Square, Slot, Decorative, Custom Logo
Hole Diameter / Slot Size	1.0mm – 20.0mm (Customizable)
Open Area Ratio	5% – 70% (Standard), custom ratios available
Surface Finishes	PVDF Coating (Standard), Anodized (Clear, Bronze, Black), Powder Coating (Any RAL Color), Brushed, Mirror
Core Benefits	Ventilation, Sun Shading, Acoustic Absorption, Aesthetic Appeal, Lightweight
Fire Performance	A2-s1, d0 (Non-combustible)
Standards	ASTM B209, EN 1396, AAMA 2605 (for PVDF coatings)



Design Features

• Enhanced Thermal Break: 42mm PA66 GF25 thermal break for superior insulation performance
• Triple Glazing Option: 4mm + 16A + 4mm + 16A + 4mm LOW-E configuration
• Pressure Equalized Design: Dual cavity drainage for weather protection
• Structural Reinforcement: 6061-T6 aluminum alloy for high wind load performance
• Custom Finishes: PVDF coating with long-term color retention
